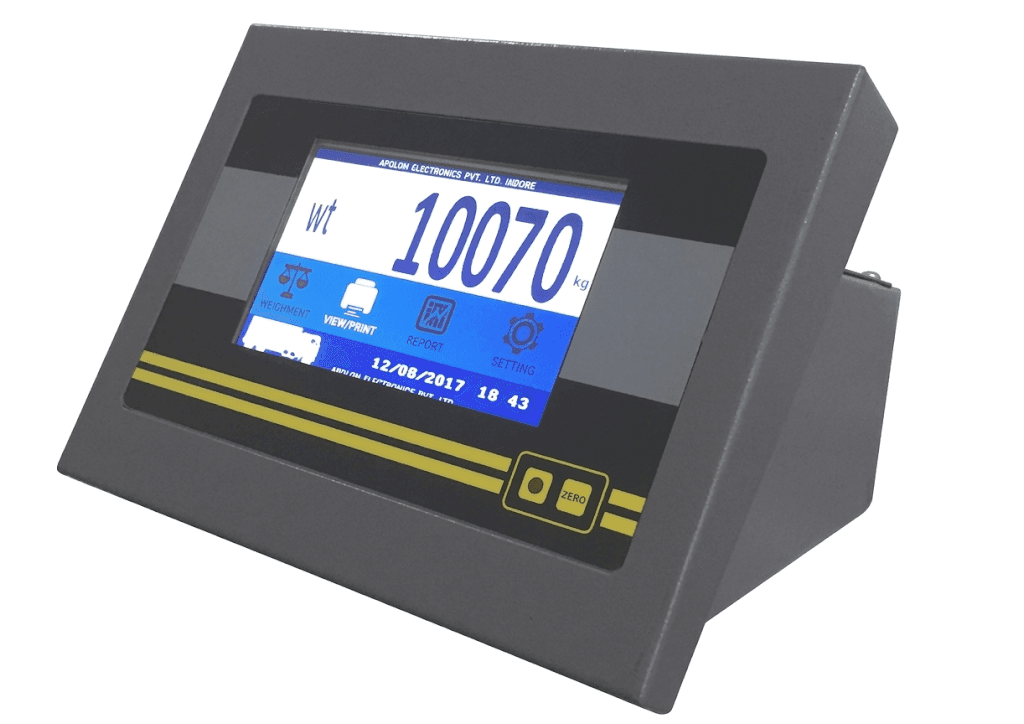

IIT 4500 with 7" TFT Colour Display
The premium terminal choice with a full 7-inch multi-colour screen, 24-bit conversion accuracy, and high-speed processing. Maximum visibility and precision for high-volume weighbridge stations.
7"
TFT Colour
Multi-colour display
24-bit
A/D Converter
Sigma-Delta type
25/sec
Sample Rate
Fast stable readings
12
Load Cells
350Ω, all supported
What the TFT Upgrade Delivers
Improvements over the standard IIT 4500 — display quality, conversion accuracy, response speed, and load cell capacity.
7" Multi-Colour TFT Display
Full-colour 7-inch TFT screen replaces the standard character LCD. Weight readings, ticket data, and status information displayed with colour differentiation for clarity.
24-bit Sigma-Delta A/D Converter
Higher resolution analogue-to-digital conversion compared to standard terminals — delivers superior signal accuracy and stability.
25 Samples Per Second
Internal conversion speed of 25 samples per second provides fast, stable, and responsive weight readings — minimal stabilisation wait time.
Drives Up to 12 Load Cells
Load cell excitation capable of driving up to 12 load cells of 350Ω input resistance — supporting large multi-cell weighbridge configurations.
Full Hardware Specifications
Complete technical detail for the AND TFT terminal series. High-precision measurement.
| Parameter | Specification |
|---|---|
| Processor | 32-bit ARM, 50 MHz |
| Real Time Clock | Battery-backed on-board RTC |
| Memory | Chip-based — 1 lakh (100,000) records |
| Power Supply | SMPS — 90V to 270V AC @ 50Hz |
| Protection | 750mA fuse, EMI/RFI filter, spike suppressor, opto-isolation |
| Power Consumption | 10 VA approx. |
| A/D Converter | Sigma-Delta type, 24-bit resolution |
| Conversion Speed | 25 samples per second (internal) |
| Load Cell Excitation | 8V DC — drives up to 12 × 350Ω load cells |
| Signal Sensitivity | 0.3 microvolt per division of weight |
| Display | 7" TFT multi-colour |
| Keyboard Port | 101-key IBM USB keyboard |
| USB Port | USB for pen drive connectivity |
| Printer Port | Isolated Centronics — 80-column dot matrix printer |
| Serial Port | Isolated RS-232 for continuous weight transmission |
| Remote Display Port | Connects ½", 1", 2.3", or 4" external LED display |
Who Should Choose the TFT
High-Volume Mandis
Large colour display ensures readability in high-traffic sites.
Multi-Cell Weighbridges
Supports up to 12 load cells for extra-long platforms.
Precision-Critical Sites
24-bit converter delivers superior accuracy for high-value cargo.
High-Visibility Cabins
Clear visibility in bright operator rooms without glare.
