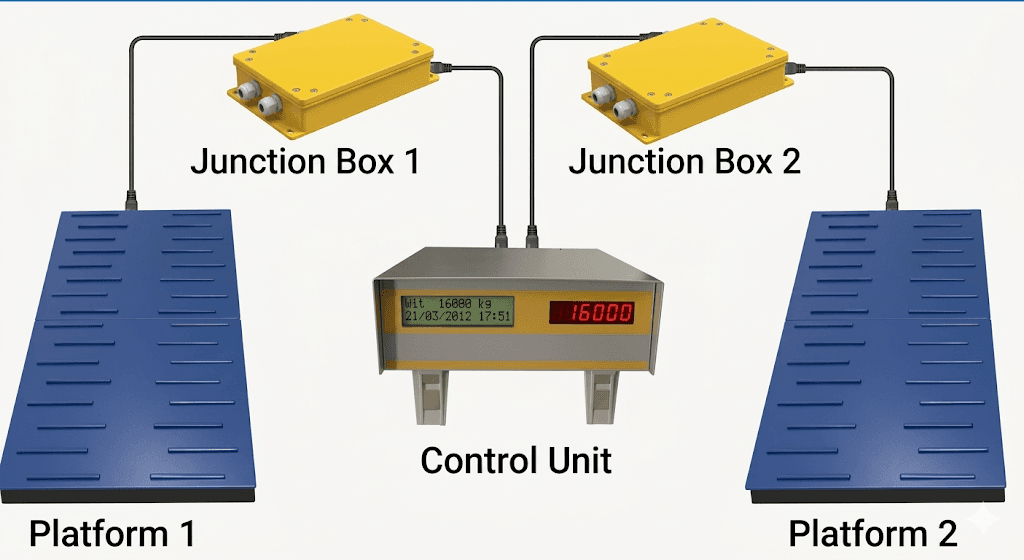

IIT 4500 Dual Platform Intelligent Terminal
Control two weighbridges from a single operator room — or expand capacity of an existing weighbridge without replacement. 32-bit ARM, 1 lakh records, Mandi application, USB export, and SMS built in. Breakdown of one platform never affects the other.
2
Platforms
Controlled simultaneously
1 Lakh
Record Memory
100,000 weighments stored
32-bit
ARM Processor
50 MHz, fast and reliable
Zero
Downtime Risk
Each platform independent
Capacity Expansion or Dual Weighbridge Control
Choose the configuration that matches your operational need. Both modes are available in the same terminal.
Capacity Expansion
Add a second platform to your existing weighbridge without replacing the structure. The terminal treats both as one or reports them independently. No installation downtime during erection.
- Existing mechanical structure can be fully utilised
- No installation downtime during erection of add-on structure
- Platform weight selection: 1st, 2nd, or combined total weight
- Saving and printing as per selection
- Data exactly resembles a simple single weighbridge
- Cost-effective capacity expansion without full replacement
Dual Weighbridge Control
Two completely separate weighbridges controlled from one operator room. Select weighbridge A or B at each transaction. Inward/outward data in a unified database.
- Single weighbridge room and operator required
- Reduces operating cost significantly
- Inward/outward data maintained in a common database
- Facility to select weighbridge A or B per transaction
- Both platforms can have different capacities and load cell types
- Breakdown of one does not affect the other
Breakdown Independence — Your Business Never Stops
During breakdown of one weighbridge, the working of the other is completely unaffected. Both platforms have independent circuits. This is a core design feature of the IIT 4500 Dual — not an add-on. Critical for high-throughput mandis, factories, and logistics hubs that cannot afford any downtime.
Installation & Weighbridge Privileges
Two-level access control — engineer settings are protected separately from daily operator use.
Weighbridge Privilege
- Simple tare / gross vehicle weighment process
- 10 ticket entry fields × 25 characters each
- 4 code banks × 100 codes each — fully configurable
- Field-settable header, footer, and signature lines
- View / print earlier records by RST or vehicle number
- Reports: All / Summary / Filtered / Serial / Date / Time wise
- USB pen drive data dump in .xls format
- SMS feature in 3 modes
- Net weight printed in words
- Mandi application: Rate, Amount, binding material deduction
Optional Features
Full Hardware Specifications
Complete technical detail from the official IIT 4500 Dual Platform brochure.
| Parameter | Specification |
|---|---|
| Processor | 32-bit ARM, 50 MHz |
| Memory | On-board — 1 lakh (100,000) records |
| Real Time Clock | Battery-backed on-board RTC |
| Power Supply | SMPS — 90V to 270V AC @ 50Hz |
| Protection | 750mA fuse, EMI/RFI filter, spike suppressor, opto-isolation |
| Power Consumption | 10 VA approx. |
| Load Cell Excitation | 13.5V DC, 300mA — up to 16 DLCs supported |
| Display | 16×2 LCD with backlight + ½" LED 7-segment red display |
| Keyboard Port | 101-key USB keyboard |
| USB Port | USB for pen drive — .xls export |
| Printer Port | Isolated Centronics — 80-column dot matrix printer |
| Serial Port | Isolated RS-232 for weight transfer / GSM modem |
| Remote Display Port | Connects ½", 1", 2.3", or 4" LED external display |
| Environment | 0°C to 55°C · Up to 95% RH non-condensing |
