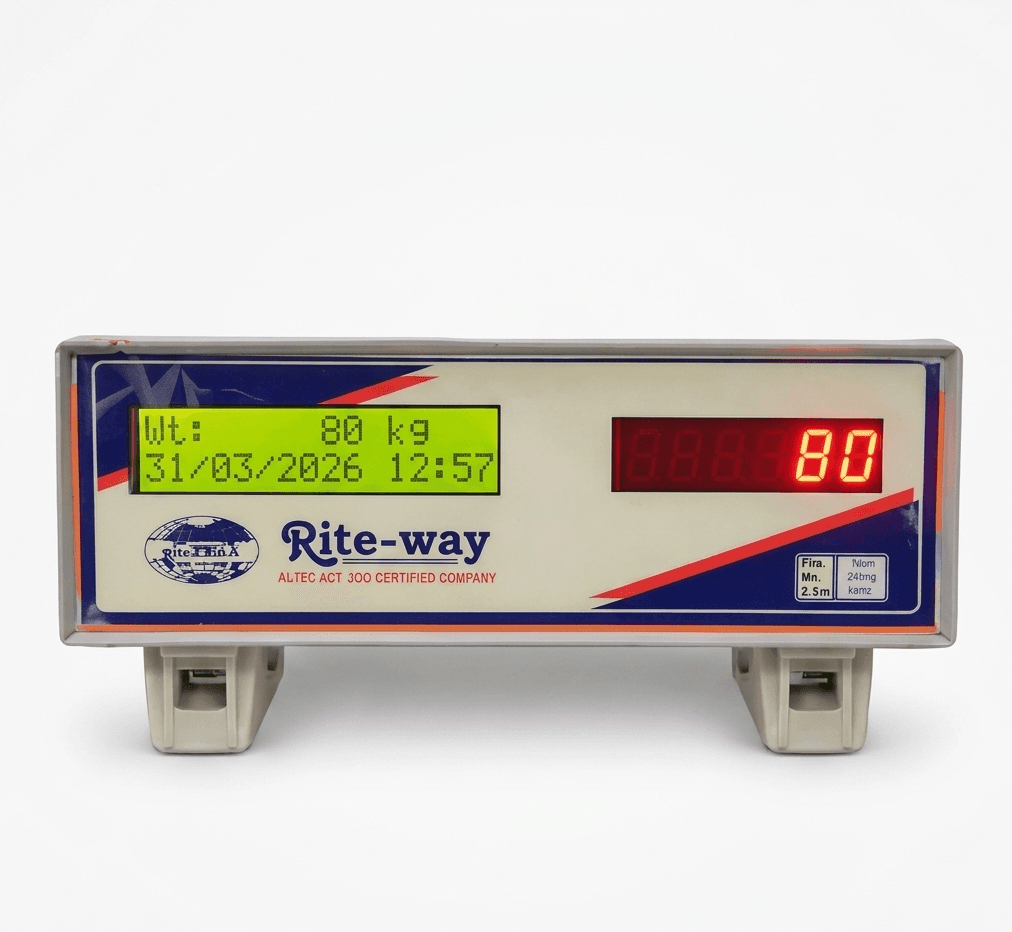

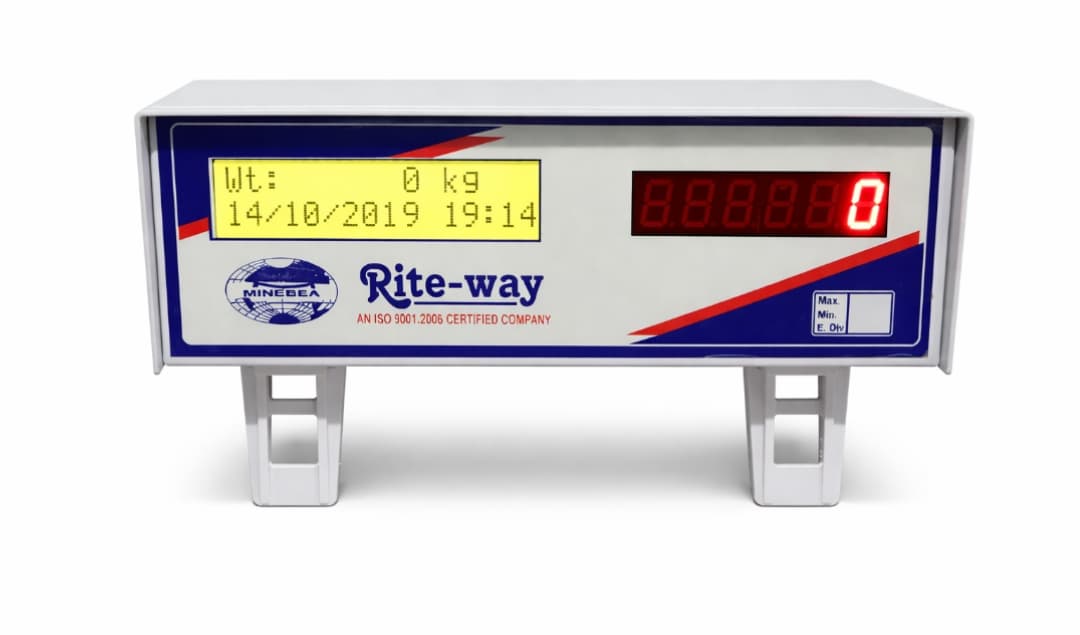

IIT 4500 Intelligent Terminal
Specially designed for single weighbridge applications with digital load cells. Features weighing, data processing, record saving, and printing — all standalone, no PC required. Robust construction withstands harsh industrial environments.
1
Weighbridge
Standalone operation
1 Lakh
Record Memory
100,000 weighments
32-bit
ARM Processor
50 MHz clock speed
SMS
3 Modes
Instant notifications
Installation & Weighbridge Privileges
Two-level access: engineer installation settings are protected separately from daily operator weighment functions.
Weighbridge Privilege
- Simple tare and gross vehicle weighment process
- 10 ticket entry fields × 25 characters each
- 4 code banks × 100 codes each — fully configurable
- Field-settable header, footer, and signature lines
- View / print earlier records by RST or vehicle number
- Reports: All / Summary / Filtered / Serial / Date / Time wise
- USB pen drive data dump in .xls format
- SMS feature in 3 modes
- Net weight printed in words
- Mandi application features built in
Salient Features
Optional Features
Where It Is Used
Industrial weighbridges, grain mandis, toll ways, and high-volume commercial sites.
Industrial Weighbridges
Single-platform weighbridge at factory gates, dispatch bays, and production facilities.
Grain Mandis
Built-in Mandi application handles rate, amount, and binding material deductions — ready out of the box.
Toll Ways
Robust construction and wide operating range handles harsh outdoor toll booth environments.
High Volume Sites
1 lakh record memory and USB export handle months of continuous operation without any PC dependency.
Full Hardware Specifications
| Parameter | Specification |
|---|---|
| Processor | 32-bit ARM, 50 MHz |
| Memory | On-board — 1 lakh (100,000) records |
| Real Time Clock | Battery-backed on-board RTC |
| Power Supply | SMPS — 90V to 270V AC @ 50Hz |
| Protection | 750mA fuse, EMI/RFI filter, spike suppressor, opto-isolation |
| Power Consumption | 10 VA approx. |
| Load Cell Excitation | 13.5V DC, 300mA — up to 16 DLCs |
| Display | 16×2 LCD with backlight + ½" LED 7-segment red display |
| Keyboard Port | 101-key USB keyboard (Logitech/Microsoft recommended) |
| USB Port | USB for pen drive — .xls data export |
| Printer Port | Isolated Centronics — 80-column dot matrix printer |
| Serial Port | Isolated RS-232 for weight transfer / GSM modem |
| Remote Display Port | Connects ½", 1", 2.3", or 4" LED external display |
| Environment | 0°C to 55°C · Up to 95% RH non-condensing |
Scope of Supply
- IIT 4500 Terminal unit
- Power cable
- Load cell connector
- Printer isolator cable
