Platform & Floor Weighing Scales
Heavy-duty floor scales for warehouses, factories, and mandis. From 100kg checked pan scales with guard rails to 2000kg open floor scales. 1/100,000 resolution, dust protection, and 4-mode operation built in.
2000 kg
Max Capacity
Industrial floor scale
1/100,000
Display Resolution
Precise piece counting
4 Cells
Load Cell Support
4×350Ω configuration
Dust Cover
Pan Protection
Dust, water & spill
Choose Your Platform Scale
Guard rail for loose goods and smaller capacities. Open floor scale for heavy-duty pallet and barrel weighing up to 2000kg.

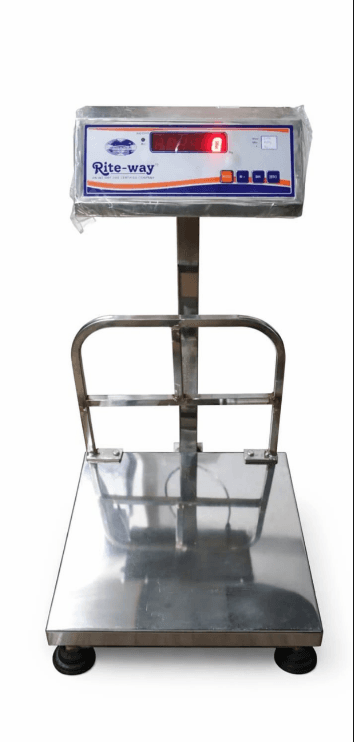

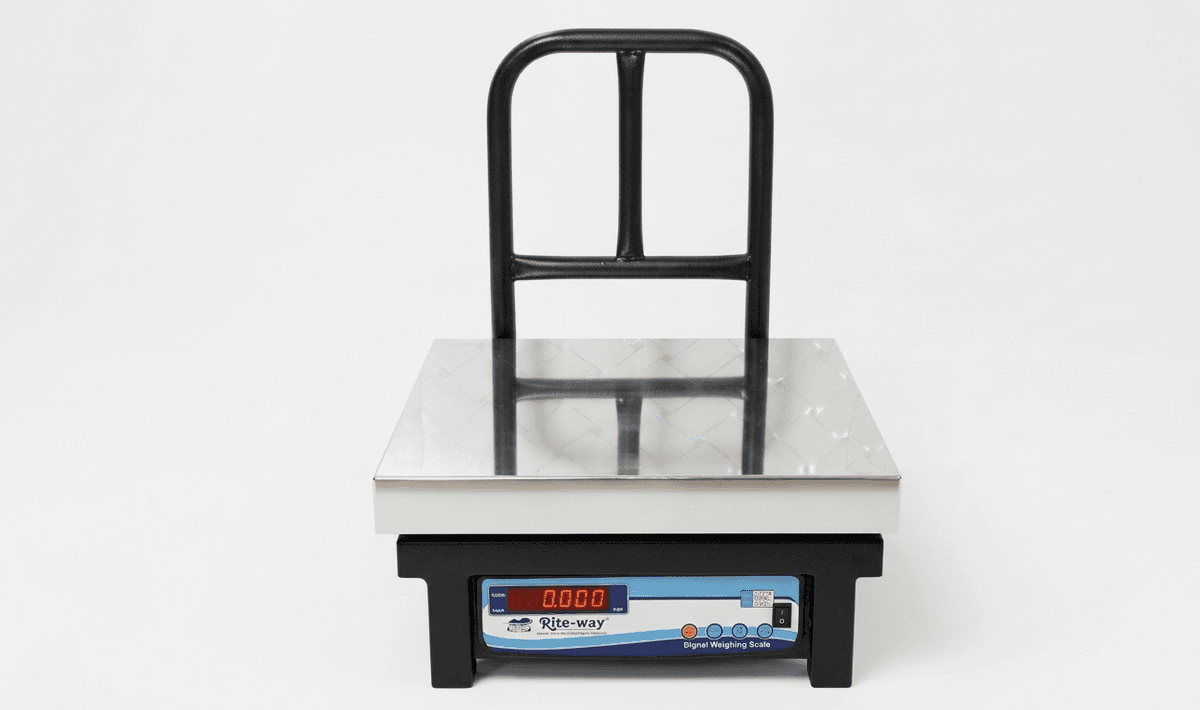

Most Popular- Guard rail prevents goods from falling off
- Multiple capacity options in one model range
- KG / Litre / Alert / Piece count modes
- Dust cover included
- Auto zero & sleep mode

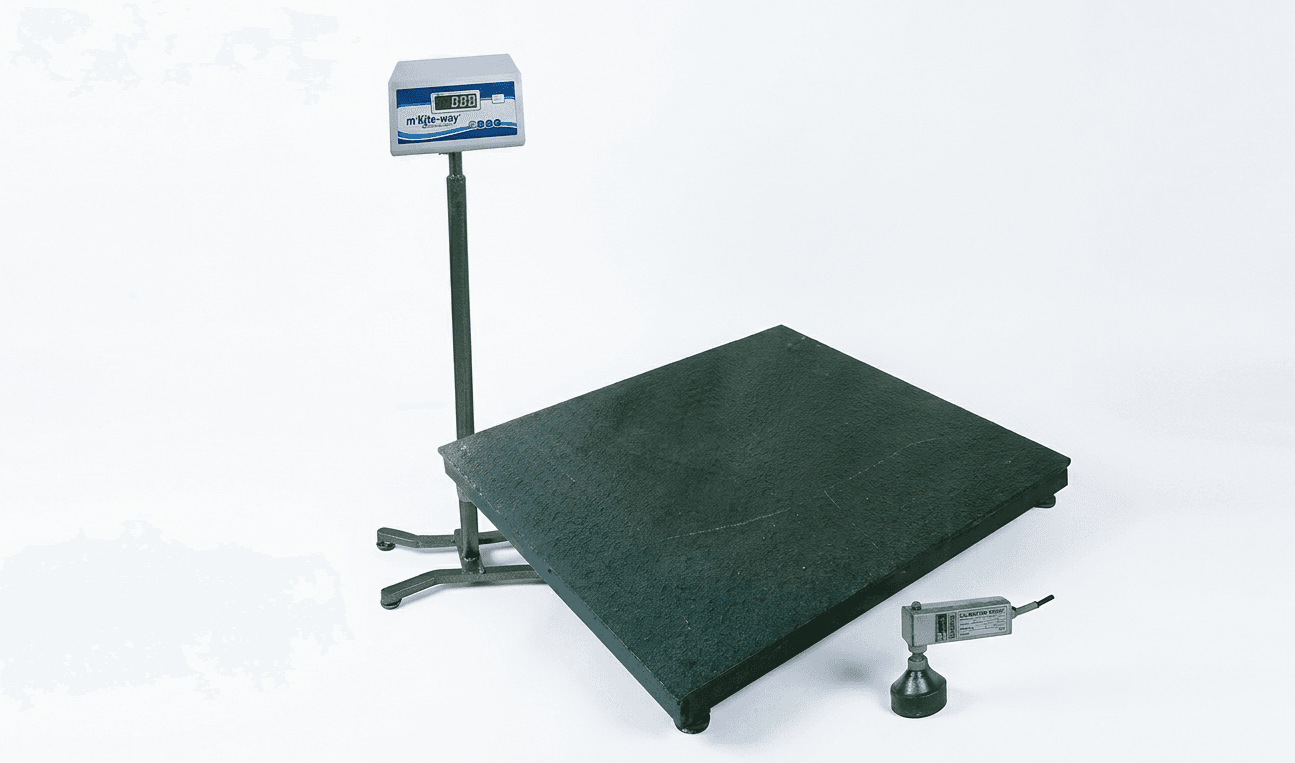

- Open platform — easy forklift loading
- Larger 1200×1200mm pan option
- RS-232 interface for computer integration
- Same 4-mode operation as checked pan
- Ideal for barrel, pallet, and sack weighing
Both Variants — Side by Side
Compare capacity, accuracy, and features between the Checked Pan and Floor Scale variants.
| Specification | Checked Pan Scale | Floor Scale |
|---|---|---|
| Type | Platform with guard rail | Open floor platform |
| Capacity | 100kg – 1000kg | 1000kg – 2000kg |
| Accuracy | 10g – 200g | 100g – 200g |
| Pan Size | 400×400mm to 1000×1000mm | 1000×1000mm to 1200×1200mm |
| Load Cells | 4 × 350Ω | 4 × 350Ω |
| Resolution | 1 / 100,000 | 1 / 100,000 |
| Modes | KG / Liter / Alert / Piece count | KG / Liter / Alert / Piece count |
| RS-232 | No | Optional |
| Dust Cover | Yes | Yes |
All variants support up to 4×350Ω load cells, piece counting, and liter mode. Guard rail on Checked Pan variant prevents items from rolling off during weighment.
